In the meat industry, precision in cutting is just as important as the safety of those operating the machinery. Band saws, essential for processing meat and bones, involve risks that make it essential to have advanced protection systems.

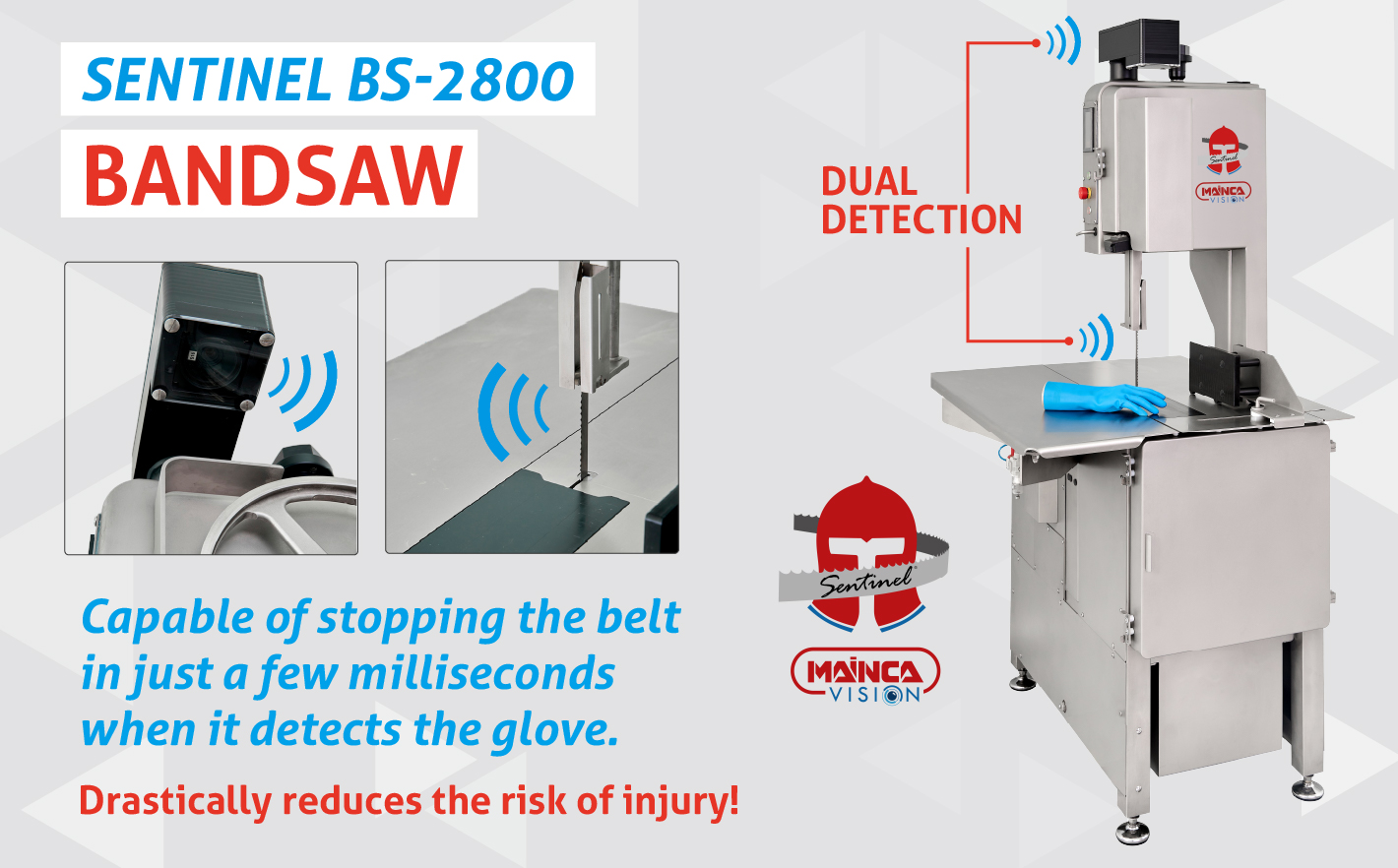

To meet this need, MAINCA has created the Sentinel BS-2800, an industrial band saw equipped with an innovative system capable of stopping the blade in just milliseconds. Thanks to its patented smart detection technology, it is possible to prevent cuts and accidents before they happen, while ensuring maximum operator protection and a continuous workflow.
Below, we detail the features of the Sentinel BS-2800 and the benefits it provides to operators and production in the meat industry.
What are the revolutionary features of the Sentinel BS-2800 band saw?
The Sentinel BS-2800 combines high-precision engineering with a unique intelligent safety system. Its main features include:
-
MAINCA Vision System: a true revolution in industrial safety. This system combines two key elements:
-
High-precision overhead camera that recognizes the Sentinel detectable glove using color detection, without physical contact.
-
Glove sensor on the table that identifies the presence of fingers even when they are hidden under the product.
When any of the sensors detect risk, the internal pneumatic brake is immediately activated and stops the blade in just 20 milliseconds.
This record time practically reduces the risk of injury to zero, positioning the Sentinel BS-2800 as one of the safest and most innovative band saws on the market.
-
AISI 304 stainless steel structure: maximum resistance to corrosion and durability in food environments, including 300 mm wheels.
-
High-efficiency internal pneumatic brake: stops the blade in milliseconds without damaging it, allowing immediate resumption of work.
-
Blade length 2720 mm, cutting height 360 mm and cutting width 280 mm: dimensions that allow working with large pieces.
-
Constant speed of 20 m/s: ensures uniform and precise cuts, optimizing productivity.
-
Touch control panel: configurable to adjust detection areas, record stops, and manage users, providing full control of the machine.
-
Minimal maintenance: withstands more than 3,000 stops without part replacement, reducing costs and downtime.
-
CE certification: complies with Directive 2006/42/EC and standard EN 12268:2014, ensuring quality and safety.
Complete Sentinel System: technology, safety and performance
The MAINCA Vision system is designed to offer maximum operator protection, but to take full advantage of its potential, it is essential to have the right components and accessories. Below, we present the essential and optional elements that complete the Sentinel experience:
The central piece of the MAINCA Vision system. Designed to cut meat and bones with total precision and the highest level of safety thanks to its smart detection. For full protection, it requires the Sentinel detectable glove and the glove sensor on the table.
CE certification according to Directive 2006/42/CE and standard EN 12268:2014.
€35,500.00 / unit (VAT not included)
MORE INFORMATION
Essential to ensure the correct operation of the MAINCA Vision safety system. Made of natural rubber and magnetically detectable, it is the only one compatible with MAINCA Vision technology. Its non-slip surface improves grip in wet and dry conditions, increasing safety during work. In addition, it is certified for safe use in the food and pharmaceutical industries.
Compliant with food regulations (EC) 1935:2004, EU 10/2021 and BfR XXI.
Certified as PPE Category III according to EU Regulation 2016/425.
Tested under standards: EN 374-1:2016+A1:2018, EN 374-5:2016, EN 388:2016+A1:2018, EN ISO 21420:2020.
€42.00 / pair (VAT not included)
MORE INFORMATION
An essential complement to the detectable glove for the dual detection system. It identifies the presence of fingers under the product, even if they are not visible, to activate the immediate stop of the bandsaw.
€5,500.00 / unit (VAT not included)
MORE INFORMATION
Necessary element if no compressed air line at 8 bars is available, ensuring the correct operation of the internal pneumatic brake.
€480.00 / unit (VAT not included)
MORE INFORMATION
Accessory that increases the available surface and improves ergonomics by facilitating the handling of larger pieces, speeding up operations and reducing the operator's physical effort.
€800.00 / unit (VAT not included)
MORE INFORMATION
Video presentation:
Distributors of the best equipment and machinery for the meat industry
As we have seen, the Sentinel BS-2800 bandsaw represents a true revolution in the industry, combining a pioneering safety system with professional cutting performance. Its intelligent detection technology, capable of stopping the blade within milliseconds, protects the operator and optimizes workflow.
At Reysan we work with the best brands to guarantee the safety, productivity, and durability of our customers' equipment. We offer a wide catalog of machinery and solutions for the meat industry, tailored to every need.
If you have any questions or would like to receive personalized advice to find the solution that best suits your business, our team of experts will be happy to assist you with the highest level of professionalism and care.
