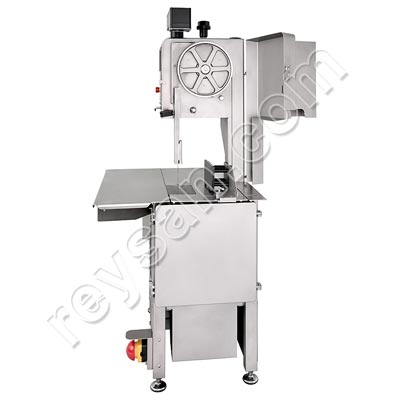

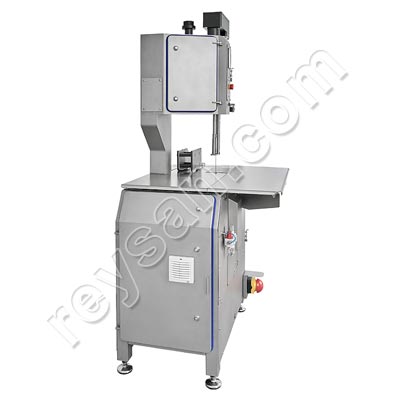

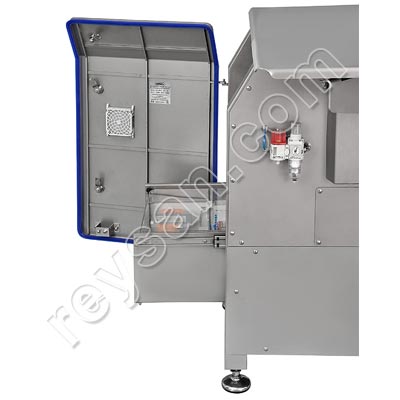

Sentinel BS-2800 Industrial Bandsaw: Meat and Bone Cutting with Smart Safety System
The Sentinel BS-2800 bandsaw by MAINCA represents a new generation of industrial safety for the meat and food processing industry. Equipped with the advanced MAINCA Vision system, it can stop the blade within milliseconds upon detecting the operator’s glove, without physical contact. This intelligent protection offers maximum safety and drastically reduces the risk of injuries, making it one of the most advanced solutions on the market.
Main Features of the Sentinel BS-2800 Bandsaw
- MAINCA Vision intelligent detection system for enhanced operator safety.

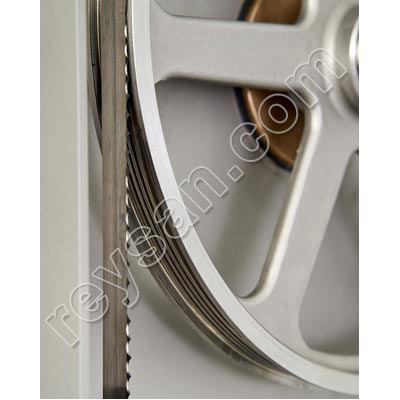

- Construction: full AISI 304 stainless steel frame, including the wheels (300 mm diameter), ideal for food environments.
- High-efficiency internal pneumatic brake that stops the blade in milliseconds without damaging it.
- Blade length: 2720 mm.
- Cutting height: 360 mm.
- Cutting width: 280 mm.
- Blade speed: constant cutting at 20 m/s for optimal performance.
- Touch control panel with multiple safety configurations and event logging.
- Motor voltage: 2 options available.
- Three-phase 230–400V 50Hz.
- Three-phase 220–380V 60Hz.
- Minimal maintenance and over 3,000 stops without part replacement.
- CE certification according to Directive 2006/42/EC and standard EN 12268:2014.
What Does the Standard Model Include, and What Is Required for the Full MAINCA Vision System?
The standard model includes:
- Sentinel BS-2800 bandsaw 4HP or 5.5HP, depending on selected motor configuration.

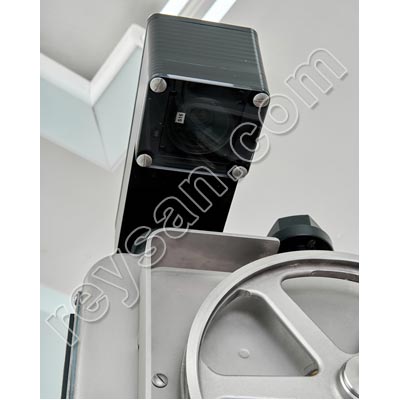

- Top detection camera for visual recognition of the Sentinel detectable glove.
- High-efficiency internal pneumatic brake integrated into the casing, with no impact on the blade.

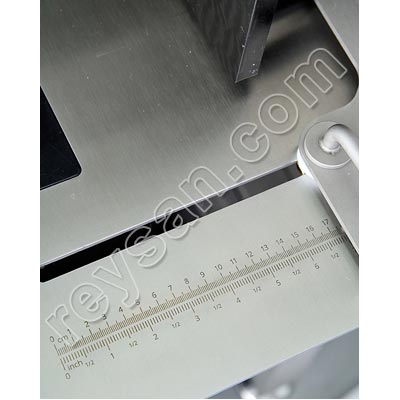

- Fixed cutting table.

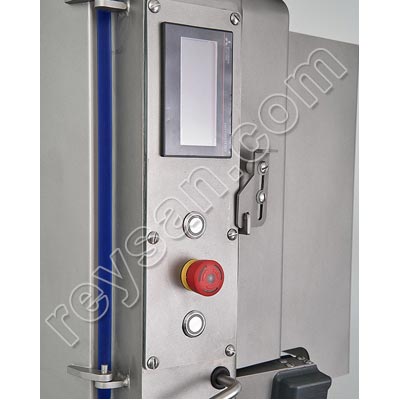

- Configurable touch control panel: detection areas, stop logs, users, etc.
- Full AISI 304 stainless steel structure, including 300 mm wheels.
Optional Components Required for the Full MAINCA Vision Dual Detection System:
To benefit from the full dual detection system, the Sentinel detectable glove and the glove sensor on the table must be added. Both components are essential to ensure the proper operation of the smart safety system:

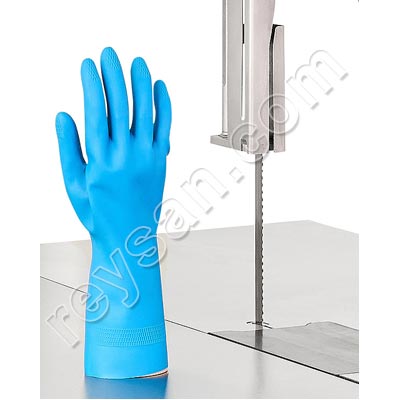

Made of natural rubber and magnetically detectable, this is the only glove approved for use with MAINCA Sentinel bandsaws. In other words, it is the only glove compatible with MAINCA Vision detection systems, both for the top camera and the table sensor. It provides excellent grip in both wet and dry conditions thanks to its anti-slip surface, enhancing safety during operation.
Web code: 9029
VIEW PRODUCT
Detects hidden fingers beneath the product to activate the dual detection system.
Web code: 9030
VIEW PRODUCT
Other Optional Accessories to Maximize Usability:
Required if no compressed air line at 8 bar is available.
Web code: 9033
VIEW PRODUCT
Improves ergonomics and facilitates handling of large pieces.
Web code: 9034
VIEW PRODUCT
How Does the MAINCA Vision Safety System Work?

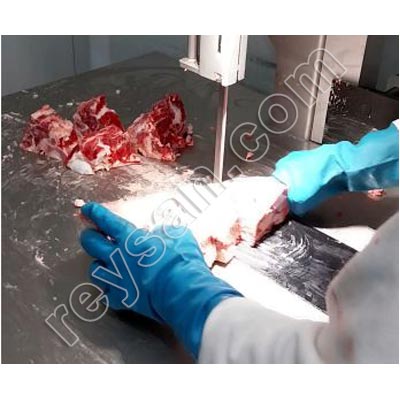

- A top camera visually detects the Sentinel glove using color recognition, with no physical connection required.
- The optional table sensor identifies hidden fingers under the product using the same detectable glove.
- When a risk is detected, the system automatically activates the internal pneumatic brake inside the machine.
- The blade stops within milliseconds without damage, allowing immediate resumption of work.
