Shopping Cart Lock System for Supermarkets in Cold-Rolled Steel with Return Coin Mechanism
The shopping cart lock system for supermarkets is the professional solution for secure trolley management in large retail stores, shopping centres and food establishments. Manufactured from cold-rolled steel sheet, DC01 quality in accordance with European standard EN 10130, with a carbon content below 0.12%, it offers superior strength and durability for intensive use in high-traffic environments. Its powder-coated epoxy-polyester finish, applied using robotic booths and oven-cured, ensures optimal protection against corrosion and daily wear.
Key Technical Features:
- Material: cold-rolled steel sheet, DC01 quality according to European standard EN 10130, with carbon content below 0.12%.
- 1.5 mm thickness on front, back and sides for enhanced structural strength.
- Steel tube legs (35 x 35 mm) with floor fixings for secure and stable installation.
- Pre-paint treatment: passivation and degreasing with amorphous phosphating for optimal paint adhesion.
- Oven curing at 180 °C for 15 minutes for maximum durability finish.
- Powder epoxy-polyester coating applied in robotic booths — structure in micro-textured grey RAL 7035, minimum thickness 50 microns.
- Zamak coin lock with chain: returnable €1 coin, removable cylinder and master-keyed system with 2 keys. Supplied assembled on the front panel.
- Includes locking chain for trolley securing.
- Supplied disassembled for easier transport — quick and intuitive assembly.
Available Options:

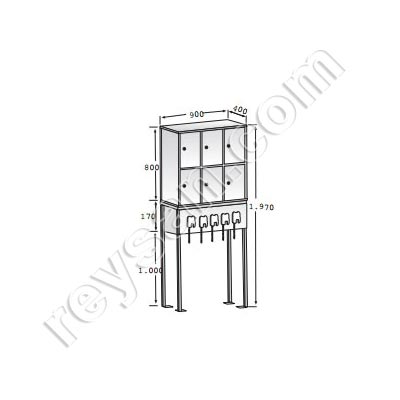

5-lock unit
- 5 zamak coin locks with removable cylinder and two keys.
- Dimensions: 1,170 mm height x 900 mm width x 400 mm depth.

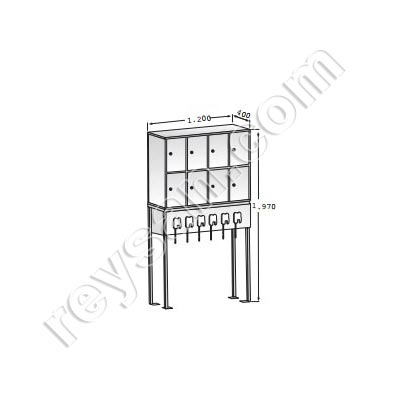

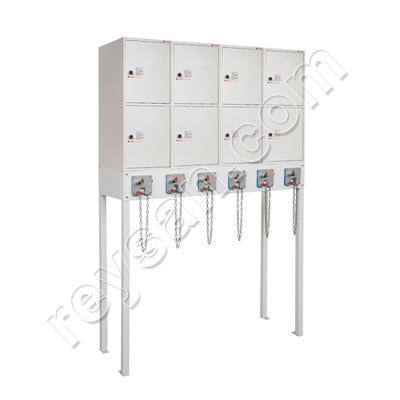

6-lock unit
- 6 zamak coin locks with removable cylinder and two keys.
- Dimensions: 1,170 mm height x 1,200 mm width x 400 mm depth.

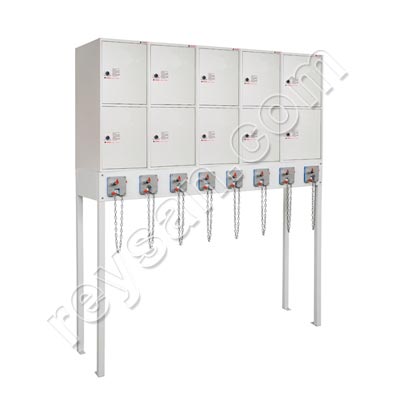

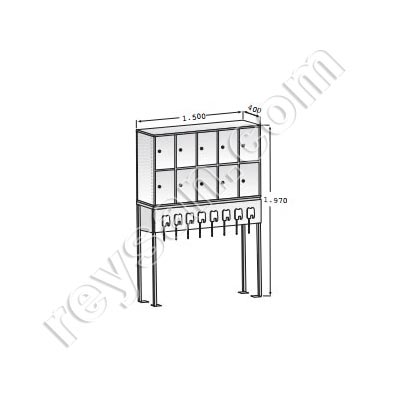

8-lock unit
- 8 zamak coin locks with removable cylinder and two keys.
- Dimensions: 1,170 mm height x 1,500 mm width x 400 mm depth.
- 5 locks
- 6 CERRADURAS
- 8 locks
