Portable generator with heat exchanger and smoke outlet to the outside, for the production of clean and healthy hot air suitable for heating in any commercial or industrial environment. For its perfect operation it is necessary to place correctly a chimney of exit of smokes, in the connection foreseen in the superior front part of the heater.
The chimney must be of the appropriate diameter and without horizontal or wavy sections. Always upwards and only with the elbows that are essential, which should never be higher than 45º, nor more than two.
This equipment can be used with the best results in the heating of industrial warehouses, premises, farms, drying sheds, etc.

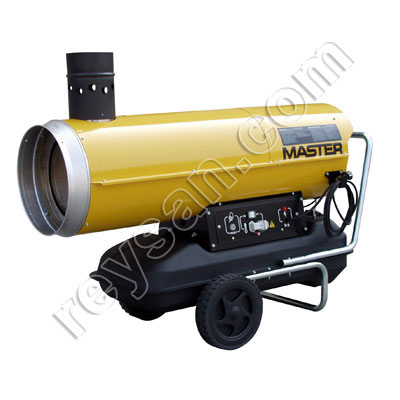

Characteristics of HEATER BV-170
- Thermal protection with post-ventilation.
- Electronic flame control.
- Safety system by photocell.
- Combustion chamber with stainless steel heat exchanger.
- Built-in fuel tank.
- High pressure fuel pump.
- Coupling for chimney of exit of gases.
- Manufactured in oven varnished steel plate.
- Wheels and minerals.
- Great flow of air.
- Optional room thermostat with plug.
Technical characteristics
| Power watts/h |
47 000 |
| Power Kcal/h |
40 420 |
| Flow rate m3/h |
1 800 |
| Outlet mouth diameter mm. |
340 |
| Tank capacity litres |
65 |
| Consumption in watts |
650 |
| Chimney diameter mm. |
150 |
| Dimensions cm (with packaging) |
133 x 66 x 100 |
| Gross weight kg. |
85 |
