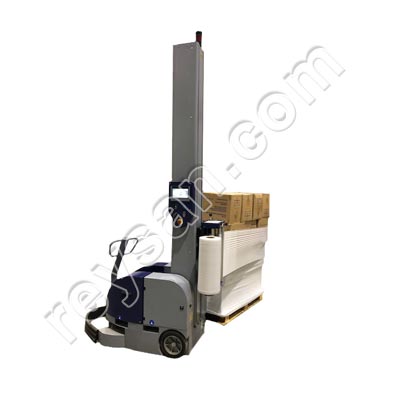

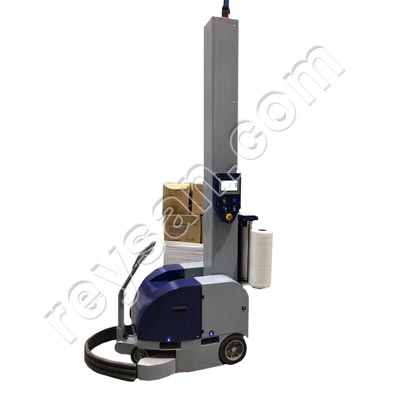

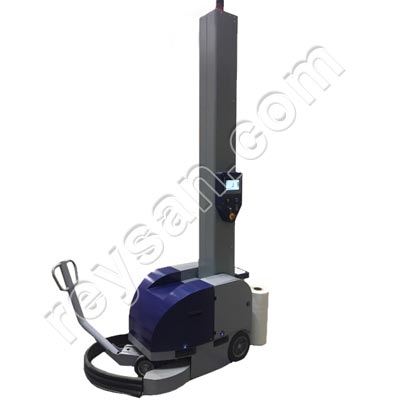

AUTOMATIC PACKAGING ROBOT

Automatic wrapping machine for wrapping palletized loads of varying dimensions and weight with stretch film.

Driven by an electric motor powered by two highly efficient batteries, it follows the profile of the load to be wrapped through its feeler wheel and distributes the stretch film thanks to its reel-carrying trolley.

Characteristics AUTOMATIC PACKAGING ROBOT

• It has 2 batteries of 12V, 110 Ah and AGM of gel of high efficiency.
• Automatic battery charger, located on board the machine.
• Trolley up/down speed: 1.3 - 6.1 m/min.
• Total weight of the robot: 420 Kg.
• Number of pallets per battery charge: approximately 160 depending on measurements.
• Minimum pallet dimensions: 600 x 600 mm.
• Minimum load weight: 80 Kg.
• Maximum useful height of wrapping: 2.400 mm. (2800 mm. optional).
• See technical sheet AUTOMATIC PACKAGING ROBOT.

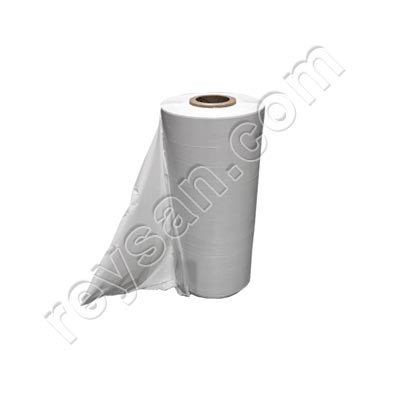

See accessory AUTOMATIC STRETCH FILM ROLL FOR PACKAGING.
