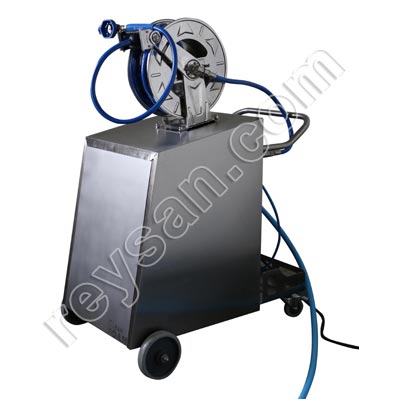

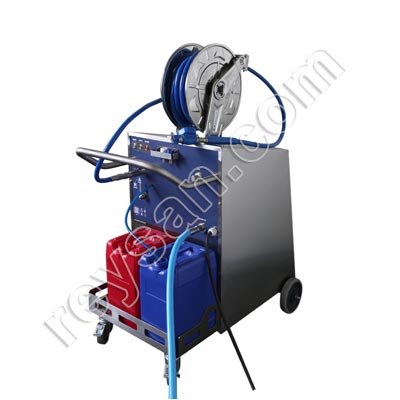

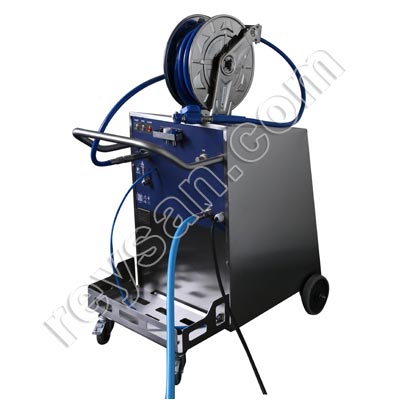

Portable Cleaning Unit for 2 Products with Grundfos Pump, Injector, and Integrated Compressor
The portable cleaning unit for 2 products is designed for demanding environments such as the food industry. Its mobile structure allows for easy movement throughout the facility and access to critical or hard-to-reach areas. Equipped with a Grundfos pump, integrated compressor, and injector with foam control, it provides an autonomous and efficient solution for professional cleaning where fixed systems are not feasible.
General Features
- Designed for areas where a fixed central system cannot be implemented.
- Capacity for 2 chemical products with optimized distribution.
- Equipped with a Grundfos pump and integrated injector with foam regulation.
- Built-in compressor makes the unit completely autonomous, with no need for external air supply.
- Quick access to internal components via front service door.
- Frequency inverter optimizes performance and reduces energy consumption.
- Durable and hygienic housing protects against wear in intensive industrial environments.
- Automatic protections against dry operation and insufficient inlet pressure.
- Features such as metal- and X-ray detectable clamps, safe for the food industry.
- Prepared for automatic hose reel installation, with reinforced structure and pre-drilled holes.
- ¾” connection hose with internal thread on both ends.
- The power cable is supplied without a plug, to adapt to the user’s specific needs.
Technical Specifications
- Quality certification: PN EN ISO 9001.
- Weight: 140 kg.
- Maximum dimensions: 750 x 1033.5 x 1075.5 mm.
- Maximum number of users: 1.
- Minimum water supply flow rate: 40 l/min.
- Water inlet: ¾” male thread.
- Water outlet: ½” male thread.
- Maximum operating pressure: 25 bar.
- Supply pressure: 2–10 bar.
- Maximum media temperature: 70?°C.
- Motor rated power: 3 kW.
- Frequency: 50 Hz.
- Rated voltage: 3 x 380–415 V + N + PE.
The Cleaning Unit Includes
- Automatic reel for 20 m of ½” hose.
- UH hose with stainless steel crimped INT/EXT ½” fittings (20 m).
- Antimicrobial butterfly valve assembly for maximum hygiene and control.
- Antimicrobial connection hose with EXT (flat)/INT (conical) ½” crimped ends.
- Male quick coupling with ½” internal thread.
Maintenance
- Use only in environments where ambient temperature is above 0?°C.
- Protect the equipment from freezing temperatures to prevent system damage.
- If frost risk exists, completely drain water from the system immediately.
- The stainless steel housing requires regular cleaning, drying, and maintenance with suitable products.
- In high humidity or saline environments, a stricter cleaning routine is recommended to prevent residue buildup.
