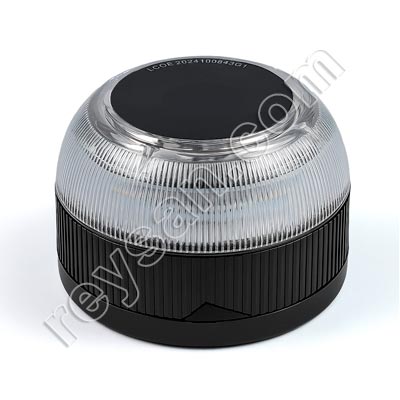

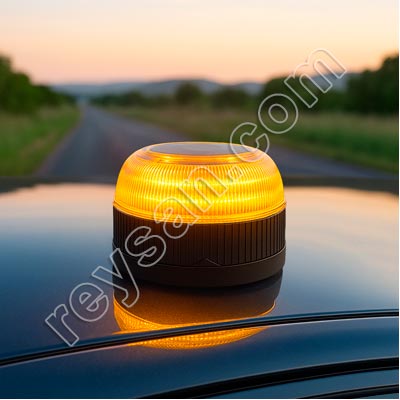

Geolocated V16 Beacon connected to DGT 3.0: mandatory road safety device from 2026
The approved and geolocated V16 beacon represents the future of roadside emergency signaling.
With IoT connectivity to the DGT 3.0 platform and official approval LCOE 2024100843G1, this device offers 360º visibility,
instant activation, and automatic communication with the Spanish Directorate-General for Traffic (DGT). As of January 2026, its use will be mandatory in Spain,
replacing traditional emergency triangles.
Main features
- Official approval LCOE 2024100843G1 in accordance with DGT specifications.
- Accurate geolocation via GNSS chip and connection to the DGT 3.0 cloud every 100 seconds.
- NB-IoT connectivity through Orange’s national network, with wide coverage across the territory.
- Data included until 2038, providing 12 years of service from 2026 with no additional cost.
- Instant magnetic activation thanks to its powerful neodymium magnet, avoiding the need to exit the vehicle.
- High-intensity amber LED light with 360º visibility certified under V16 standards.
- IP54 water and dust resistance, ensuring durability under adverse conditions.
- Wind resistance certified up to 180 Pa according to V16 standards.
- Connection check with DGT to ensure proper device operation.
- Spanish design with high manufacturing standards and premium materials.
- Includes AA alkaline batteries, easy to replace and available in any store.
The V16 LED beacon connected to DGT is an investment in safety and regulatory compliance.
Its ergonomic design, powerful illumination, and certified connectivity make it the most advanced and secure
device on the market for roadside emergency situations.
Technical data
Luminous section:
| Parameter |
Value |
| Intensity 0º |
> 40 candelas |
| Intensity ±8º |
> 25 candelas |
| Range |
Amber color 1700–1900ºK |
Power supply:
| Parameter |
Value |
| Removable battery |
Yes |
| Battery model |
3xAA |
| Voltage |
4.5 V |
| Rechargeable |
No |
| Approved models |
LDMAX Super Alkaline; PHILIPS Power Alkaline |
Physical characteristics:
| Parameter |
Value |
| Dimensions |
85 x 85 x 53 mm |
| Weight without batteries |
0.150 g |
| Sealing grade |
> IPX54 |
| Body material (housing) |
ABS |
| Lens material |
PC (polycarbonate) |
| Optimal operating temperature |
-10 ºC to +50 ºC |
| Air pressure stability without displacement |
> 180 Pa |
| Magnets |
Neodymium |
