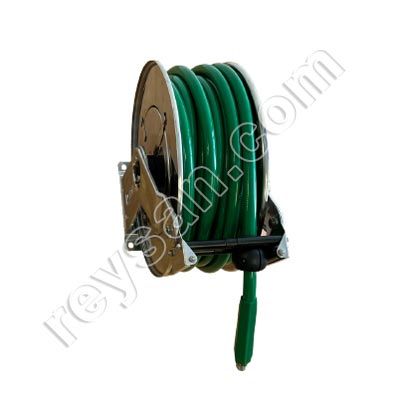

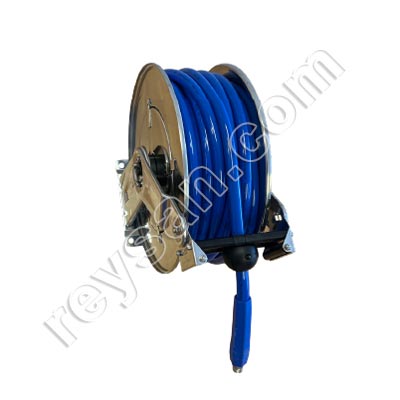

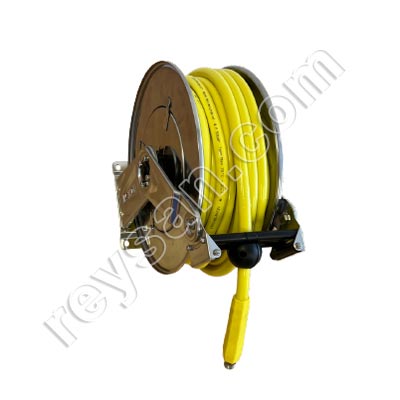

AUTOMATIC STAINLESS STEEL HOSE REEL WITH HOSE
Otros
Web Code: 8717 Catalogue code: 98405
740.55 € (VAT not included)
896.07 € (21% VAT included)
The unit is a 740.55 € (VAT not included)
Hose reel with hose included for effective and safe cleaning. Impeccable hygiene with flexible, chemical resistant hose and antimicrobial protection.
The delivery time for this product can take up to 30 days.
Option 1
Option 2
740.55 € (VAT not included)
Return and refund policies
2% discount on online orders

DISCOUNT

In the online orders

Quality products

QUALITY PRODUCTS

+ 5,000 references in stock

Reysan Whatsapp: Ask us what you want

+0034 603 721 702

Ask us what you want

The AUTOMATIC STAINLESS STEEL HOSE REEL WITH HOSE is the definitive solution for deep cleaning in various industries that require rigorous disinfection. Specially designed to meet the meeting the most demanding demands of the food industry and factories, this hose reel is the perfect choice for companies looking for an effective and safe cleaning solution.

Main Features of the AUTOMATIC STAINLESS STEEL HOSE REEL WITH HOSE

  • Food Safe: Is made from food grade materials, making it perfect for use in the food industry.
  • Flexible and Durable Hose: The hose included in this reel has been designed specifically for central cleaning systems. Its flexibility allows easy handling and access to hard-to-reach areas, while its durability ensures long life even in demanding industrial environments.
  • Textile Reinforcement and 6 Layers Resistant to Chemical Products: The hose has a textile reinforcement and is waterproof. Constructed with 6 chemical resistant layers, making it resistant to wear and tear and a wide range of chemicals used in industrial cleaning.
  • Antimicrobial Protection: The outer layer of the hose contains an antimicrobial additive that makes it resistant to bacteria, fungi and molds. In addition, its smooth surface does not adsorb contaminants, making it easy to clean and maintain.
  • Color Coding: For efficient and organized management, the hose is color coded. Available in 4 different colors allowing for color coding. This makes it easy to identify and use the appropriate hose for different applications or work areas.
  • Color Matched Antimicrobial Protection: For complete protection, the hose carries an antimicrobial protection that matches the color of the hose, ensuring additional hygiene in all your cleaning operations.

Technical characteristics for each variant according to hose size

  • Technical sheet Variant 15 meters.
  • Technical sheet Variant 20 meters.
  • Technical sheet Variant 35 meters.

Technical Specifications 15-meter Variant 20-meter Variant 35-meter Variant
Admitted Diameters 1/2" 1/2" 1/2"
Hose Length in Meters 15 meters 20 meters 35 meters
Max. Working Pressure at 23°C 80 bars 80 bars 80 bars
Max. Working Pressure at 70°C 40 bars 40 bars 40 bars
Working Temperature Range -15°C / 70°C -15°C / 70°C -15°C / 70°C
Inlet Thread Size 1/2" M Inlet Connection 1/2" M Inlet Connection 1/2" M Inlet Connection
Outlet Thread Size 1/2" F Outlet Connection 1/2" F Outlet Connection 1/2" F Outlet Connection
Weight 19.9 kg 25 kg 40.9 kg
Reel Material AISI 304 AISI 304 AISI 304
Axle and Swivel Joint Material AISI 303 AISI 303 AISI 303
Main Spring Material Carbon Steel Carbon Steel Carbon Steel
Hose Material PVC, Polyester, Antimicrobial Additive PVC, Polyester, Antimicrobial Additive PVC, Polyester, Antimicrobial Additive
Hose Inner Diameter 12 +/- 0.6mm 12 +/- 0.6mm 12 +/- 0.6mm
Hose Outer Diameter 22 +/- 0.6mm 22 +/- 0.6mm 22 +/- 0.6mm
Bending Diameter 84mm 84mm 84mm
Burst Pressure at 20°C 150 bars 150 bars 150 bars
Burst Pressure at 70°C 80 bars 80 bars 80 bars
Suitable for Air Water Chemicals Air Water Chemicals Air Water Chemicals
Included Accessories 1/2" Hose Bumper and 1/2" Nozzle 1/2" Hose Bumper and 1/2" Nozzle 1/2" Hose Bumper and 1/2" Nozzle
  • BLUE With 15 m hose.
  • RED With 15 m hose.
  • YELLOW With 15 m hose.
  • GREEN With 15 m hose.
  • BLUE CON MANGUERA DE 20 M.
  • RED CON MANGUERA DE 20 M.
  • YELLOW CON MANGUERA DE 20 M.
  • GREEN CON MANGUERA DE 20 M.
  • BLUE CON MANGUERA DE 35 M.
  • RED CON MANGUERA DE 35 M.
  • YELLOW CON MANGUERA DE 35 M.
  • GREEN CON MANGUERA DE 35 M.
